Model overview and facts
Specifications of the different models (designs, patterns) of the fronts for IKEA kitchens
At this page we showcase all the different patterns and the models of the fronts for IKEA kitchens as well as the technical data sheets and specifications sorted per model. All these models are possible for both the discontinued Faktum range as well as for the contemporary Metod range currently sold by IKEA today.
Our 10 most popular styles of fronts

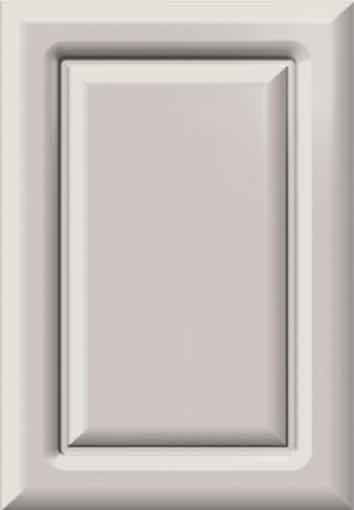

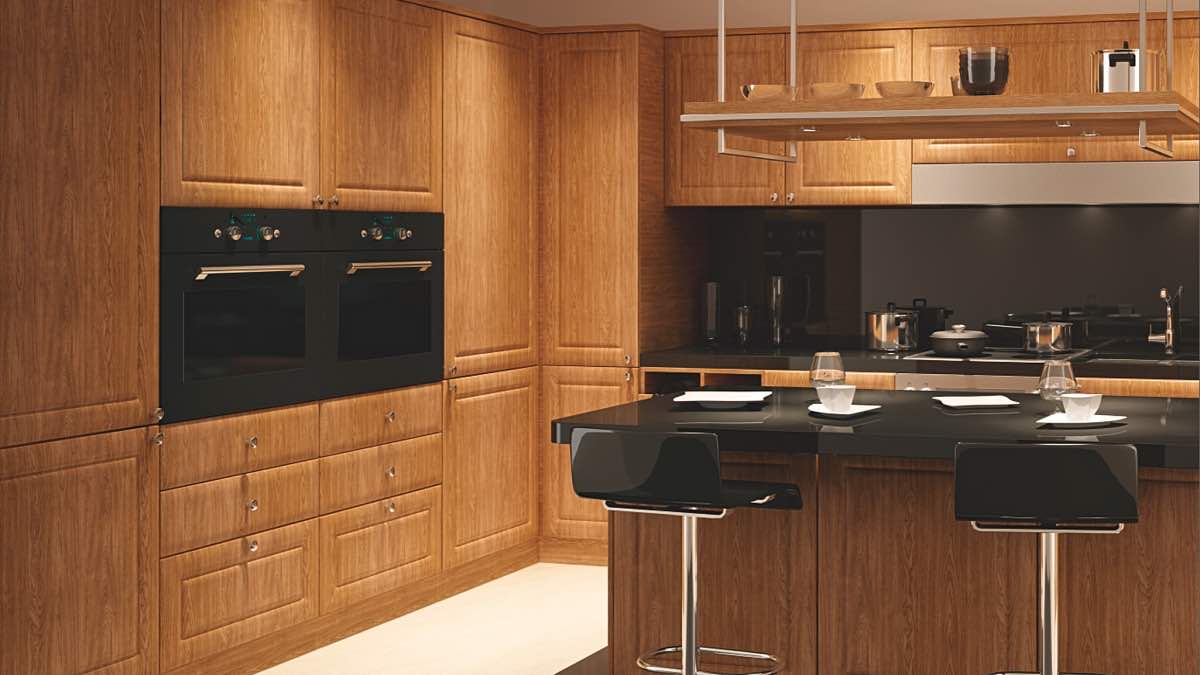

Pattern W03
|
Facts sheet for profile W03
|
|
|---|---|
|
Thickness
|
18 mm
|
|
Frame
|
Beveled
|
|
Sides
|
Smooth
|
|
Possible for Faktum
|
Yes
|
|
Posible for Metod
|
Yes
|
|
Custom sizes possible
|
Yes, at no extra cost
|
|
Possible as glass panel doors
|
No
|
|
Low drawer fronts Faktum
|
Heights 9, 13 & 18 cm = Flat + smooth sides. Taller fronts will have the full W03 profile
|
|
Low drawer fronts Metod
|
Heights 10 & 20 cm = Flat + smooth sides. Taller fronts will have the full W03 profile
|
|
Moisture resistant
|
Yes. Even good for bathrooms, zone 2 and therefore suitable to be fitted in a normal kitchen with minor splash from the sink
|
|
Warranty
|
5-year warranty against damage caused by moisture
|

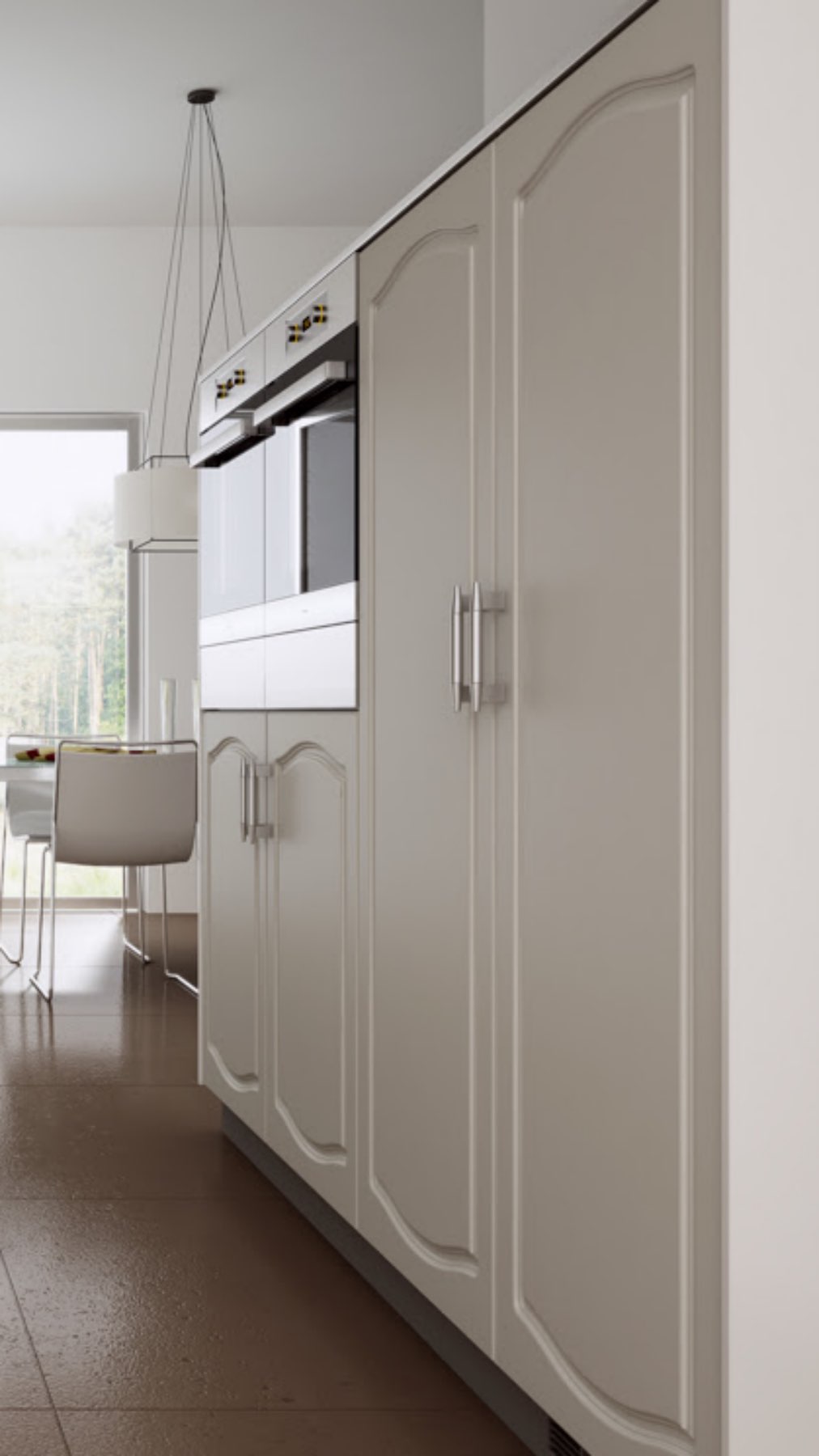

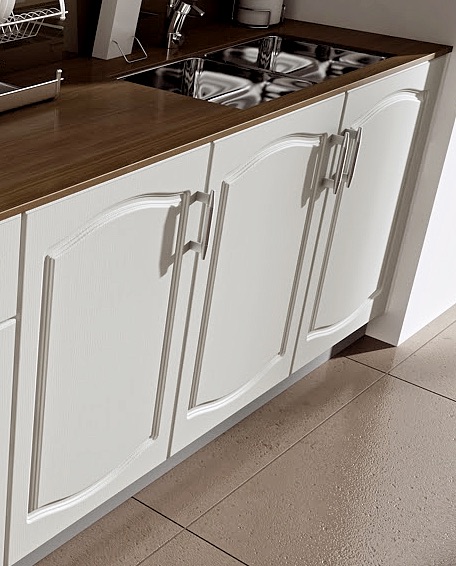

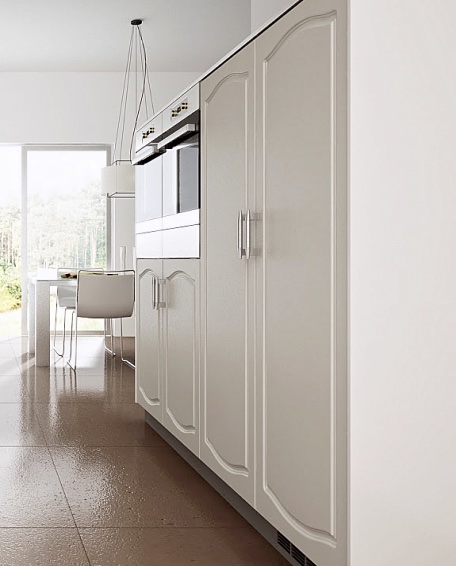

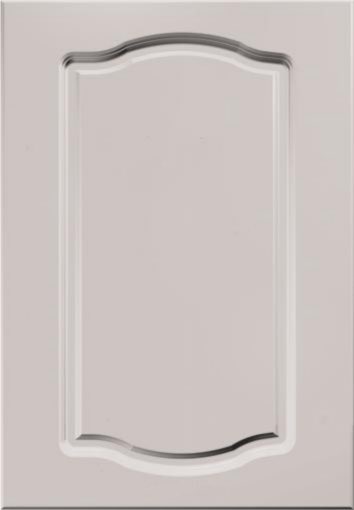

Pattern W07
|
Facts sheet for profile W07
|
|
|---|---|
|
Thickness
|
18 mm
|
|
Frame width
|
58 mm
|
|
Sides
|
Sculpted
|
|
Possible for Faktum
|
Yes
|
|
Posible for Metod
|
Yes
|
|
Custom sizes possible
|
Yes, at no extra cost
|
|
Possible as glass panel doors
|
Yes
|
|
Low drawer fronts Faktum
|
Heights 9, 13 & 18 cm = Flat + sculpted sides. Taller fronts will have the full W12 profile
|
|
Low drawer fronts Metod
|
Height 10 cm = Flat + sculpted sides. Taller fronts will have the full W12 profile
|
|
Moisture resistant
|
Yes. Even good for bathrooms, zone 2 and therefore suitable to be fitted in a normal kitchen with minor splash from the sink
|
|
Warranty
|
5-year warranty against damage caused by moisture
|

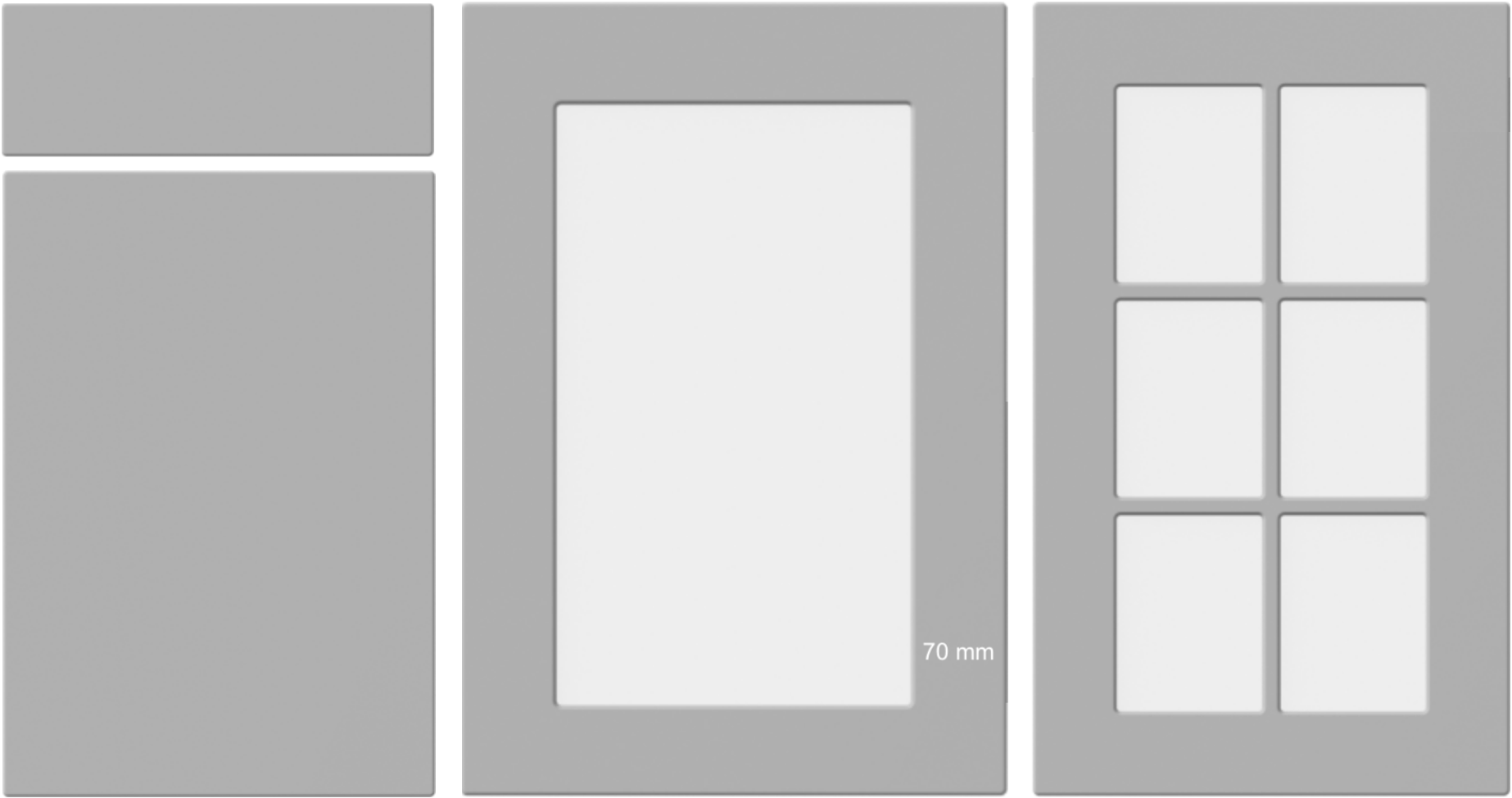

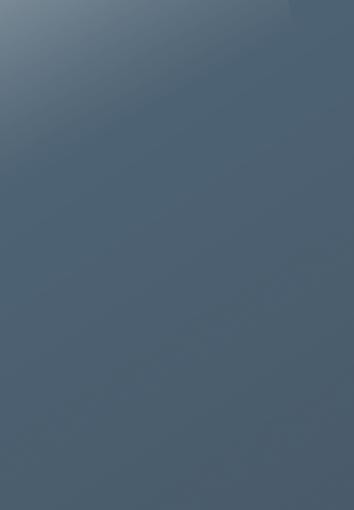

Pattern W08

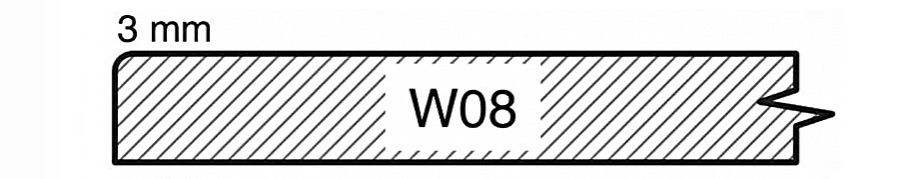

The W08 pattern is a design with flat a surface and with slightly rounded sides. 3 mm radius. W08 is a classic design and it leaves plenty of room to express yourself with bold handles.
|
Facts sheet for profile W08
|
|
|---|---|
|
Thickness
|
18 mm
|
|
Frame width
|
No frame. Fully flat surface
|
|
Sides
|
Smooth. Rounded by 3 mm radius
|
|
Possible for Faktum
|
Yes
|
|
Posible for Metod
|
Yes
|
|
Custom sizes possible
|
Yes, at no extra cost
|
|
Possible as glass panel doors
|
Yes
|
|
Low drawer fronts
|
Same profile, no difference
|
|
Moisture resistant
|
Yes. Even good for bathrooms, zone 2 and therefore suitable to be fitted in a normal kitchen with minor splash from the sink
|
|
Warranty
|
5-year warranty against damage caused by moisture
|

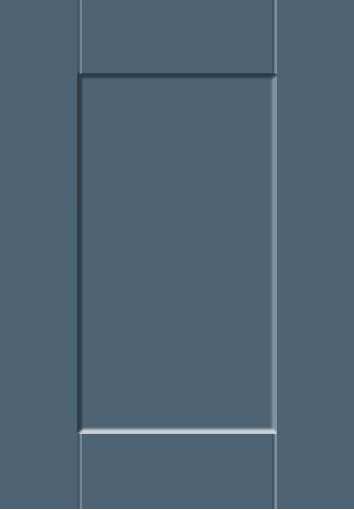

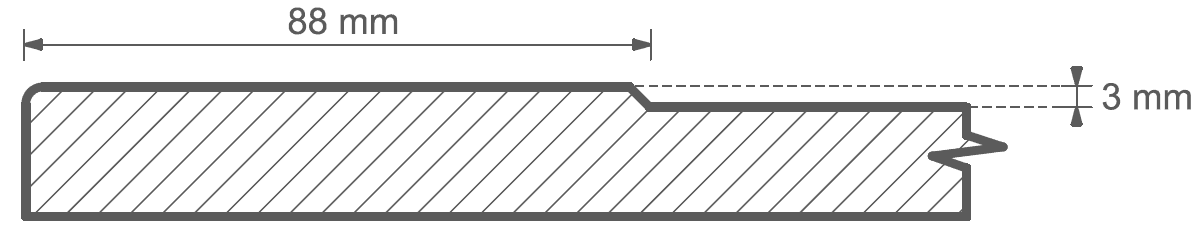

Pattern W09
This iconic shaker design is most similar to the classic IKEA Faktum Ädel design. They both have the 88 mm frame all around. As an alternative please also soo the sibling W76 with a frame width of just 55 mm.
|
Facts sheet for profile W09
|
|
|---|---|
|
Thickness
|
19 mm
|
|
Frame width
|
88 mm
|
|
Sides
|
Smooth. Rounded by 3 mm radius
|
|
Possible for Faktum
|
Yes
|
|
Posible for Metod
|
Yes
|
|
Custom sizes possible
|
Yes, at no extra cost
|
|
Possible as glass panel doors
|
Yes
|
|
Low drawer fronts Faktum
|
Heights 9, 13 & 18 cm = Flat. Taller fronts will have the W09 profile
|
|
Low drawer fronts Metod
|
Heights 10 & 20 cm = Flat. Taller fronts will have the W09 pattern
|
|
Moisture resistant
|
Yes. Even good for bathrooms, zone 2 and therefore suitable to be fitted in a normal kitchen with minor splash from the sink
|
|
Warranty
|
5-year warranty against damage caused by moisture
|

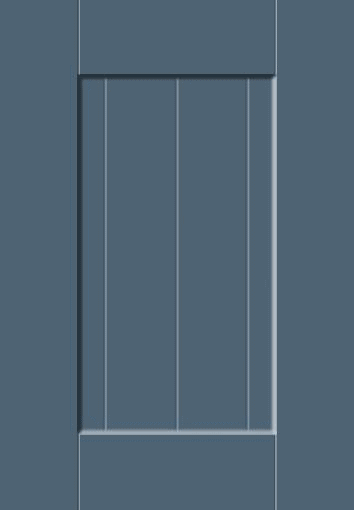

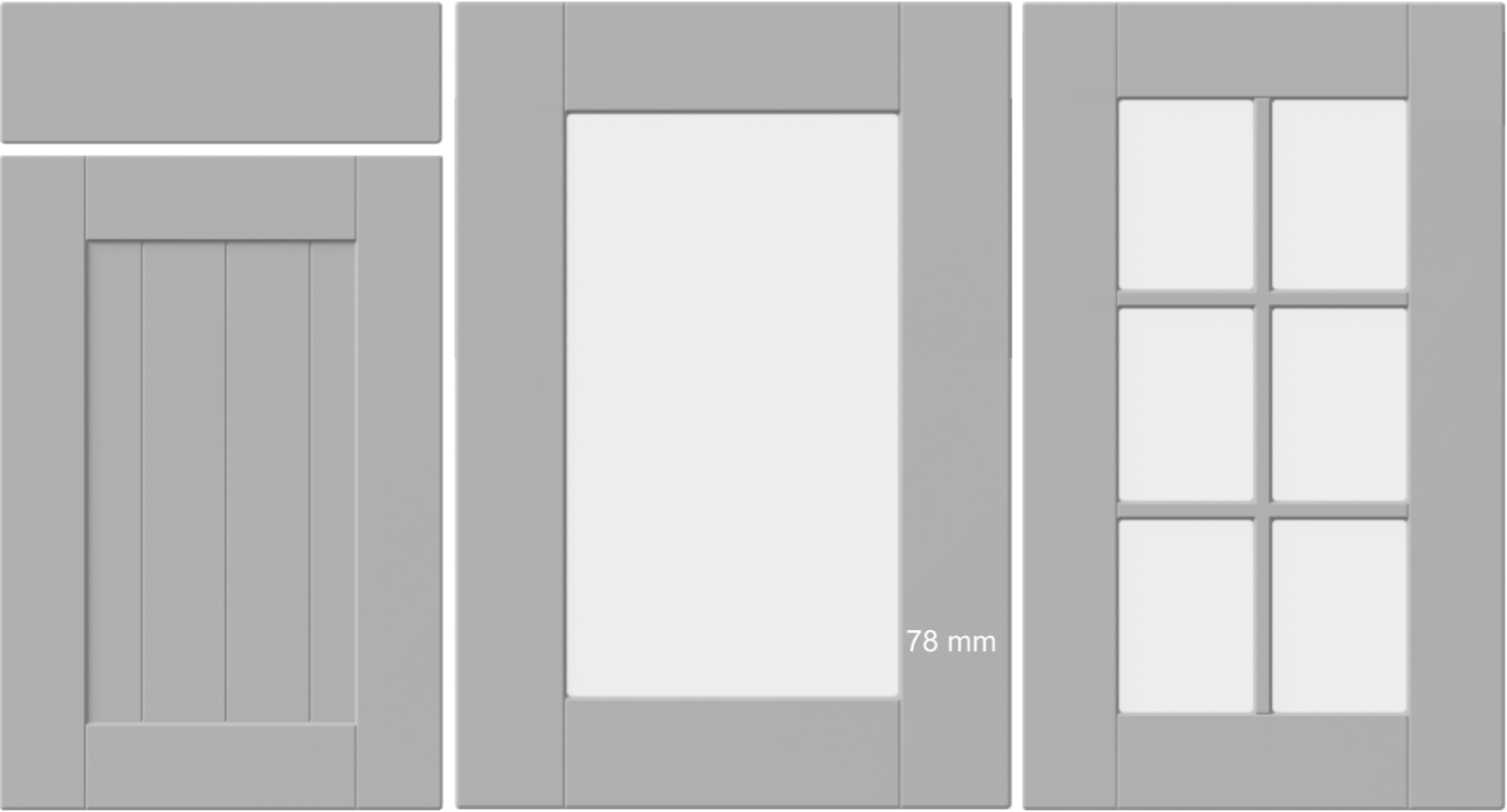

Pattern W10
The W10 profile is similar to the W09 profile. The frames are somewhat slimmer and there are milled stripes to the inner part of this model.
|
Facts sheet for profile W10
|
|
|---|---|
|
Thickness
|
19 mm
|
|
Frame width
|
78 mm
|
|
Sides
|
Smooth. Rounded by 3 mm radius
|
|
Possible for Faktum
|
Yes
|
|
Posible for Metod
|
Yes
|
|
Custom sizes possible
|
Yes, at no extra cost
|
|
Possible as glass panel doors
|
Yes
|
|
Low drawer fronts Faktum
|
Heights 9, 13 & 18 cm = Flat. Taller fronts will have the W10 profile
|
|
Low drawer fronts Metod
|
Heights 10 & 20 cm = Flat. Taller fronts will have the W10 pattern
|
|
Moisture resistant
|
Yes. Even good for bathrooms, zone 2 and therefore suitable to be fitted in a normal kitchen with minor splash from the sink
|
|
Warranty
|
5-year warranty against damage caused by moisture
|

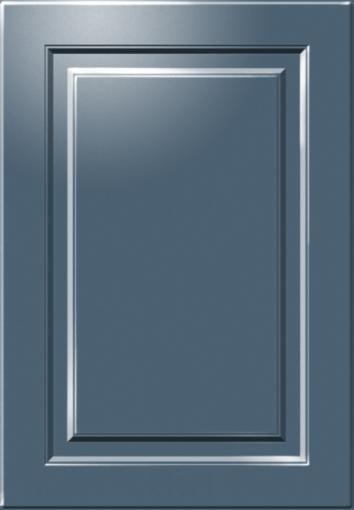

Pattern W12

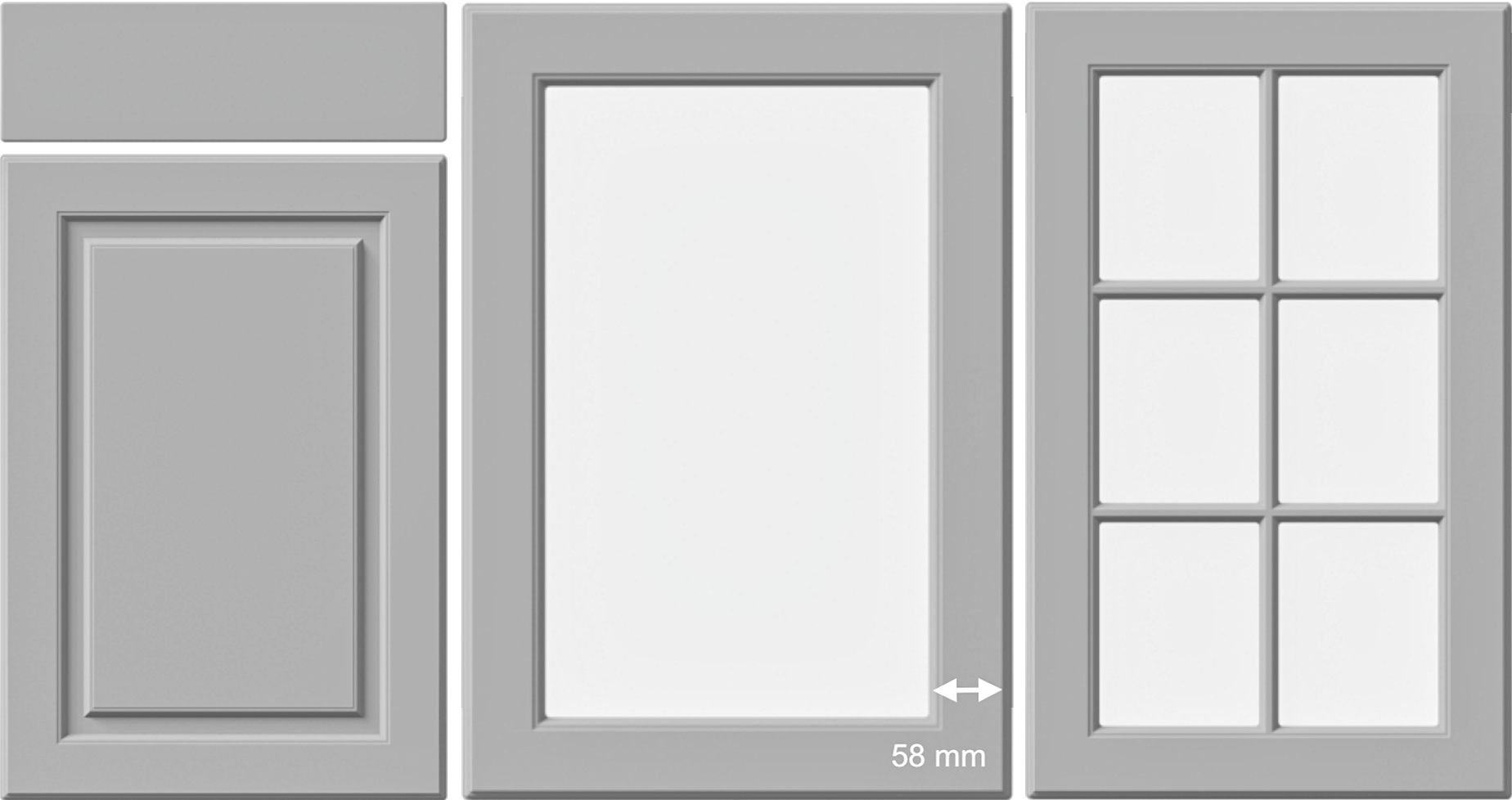

The W12 profile has got a very elegant and luxurious look. Several small and subtle carvings. Often considered together with the elegant W30 profile.
|
Facts sheet for profile W12
|
|
|---|---|
|
Thickness
|
18 mm
|
|
Frame width
|
58 mm
|
|
Sides
|
Sculpted
|
|
Possible for Faktum
|
Yes
|
|
Posible for Metod
|
Yes
|
|
Custom sizes possible
|
Yes, at no extra cost
|
|
Possible as glass panel doors
|
Yes
|
|
Low drawer fronts Faktum
|
Heights 9, 13 & 18 cm = Flat + sculpted sides. Taller fronts will have the full W12 profile
|
|
Low drawer fronts Metod
|
Height 10 cm = Flat + sculpted sides. Taller fronts will have the full W12 profile
|
|
Moisture resistant
|
Yes. Even good for bathrooms, zone 2 and therefore suitable to be fitted in a normal kitchen with minor splash from the sink
|
|
Warranty
|
5-year warranty against damage caused by moisture
|

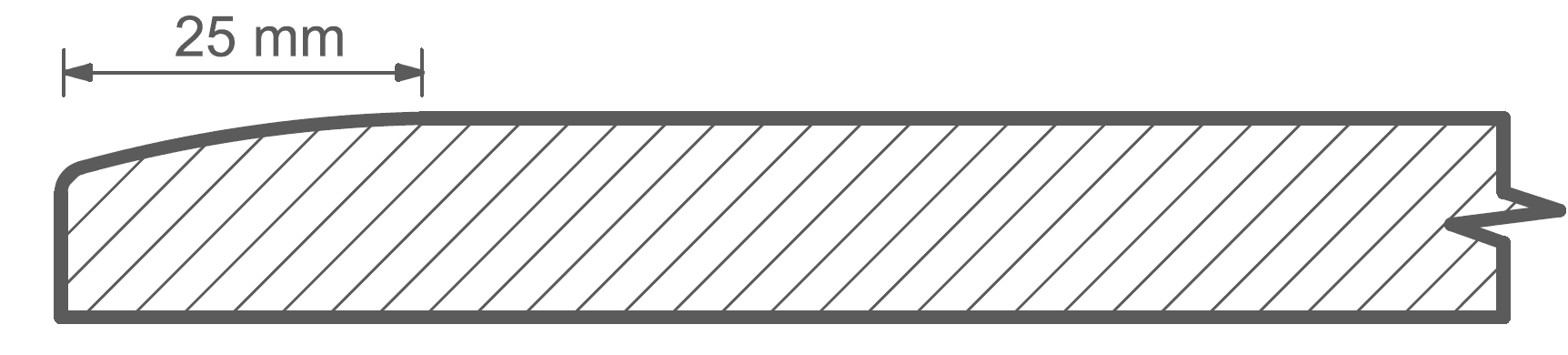

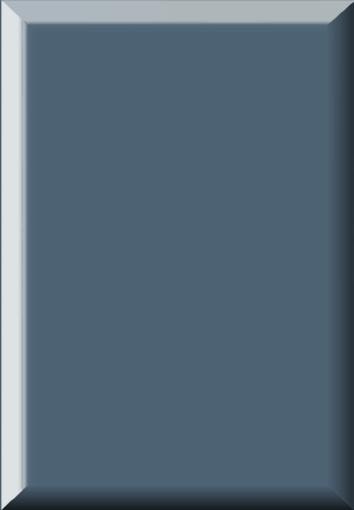

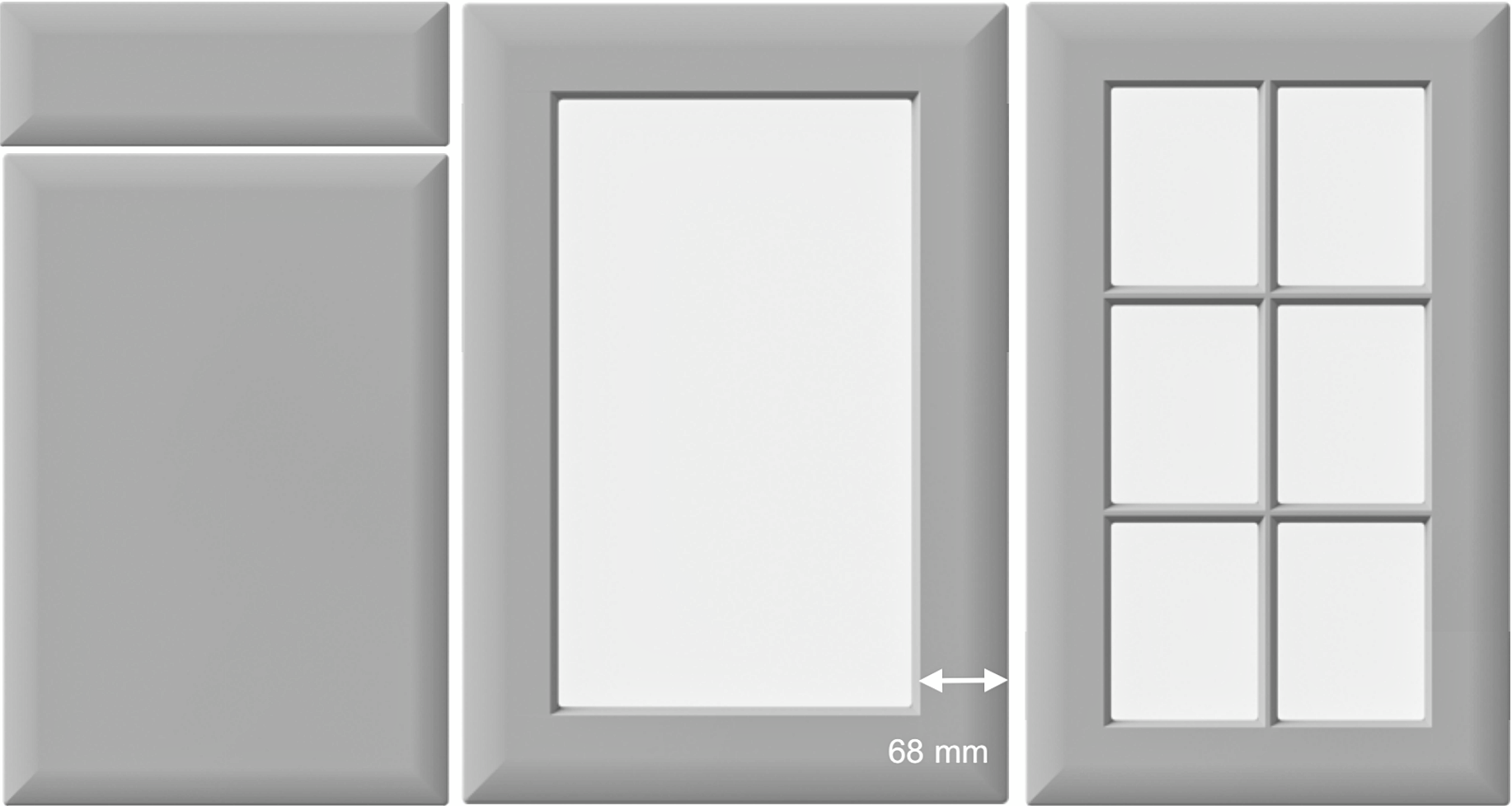

Pattern W16
The W16 profile is essentially a flat front design but with beveled sides. The outer 25 mm is smoothened off by up to 4 mm of the thickness.
|
Facts sheet for profile W16
|
|
|---|---|
|
Thickness
|
18 mm
|
|
Frame width
|
No frame. Fully flat surface but the outer 25 mm
|
|
Sides
|
Beveled up to 4 mm of the thickness
|
|
Possible for Faktum
|
Yes
|
|
Posible for Metod
|
Yes
|
|
Custom sizes possible
|
Yes, at no extra cost
|
|
Possible as glass panel doors
|
Yes
|
|
Low drawer fronts
|
Same profile, no difference
|
|
Moisture resistant
|
Yes. Even good for bathrooms, zone 2 and therefore suitable to be fitted in a normal kitchen with minor splash from the sink
|
|
Warranty
|
5-year warranty against damage caused by moisture
|

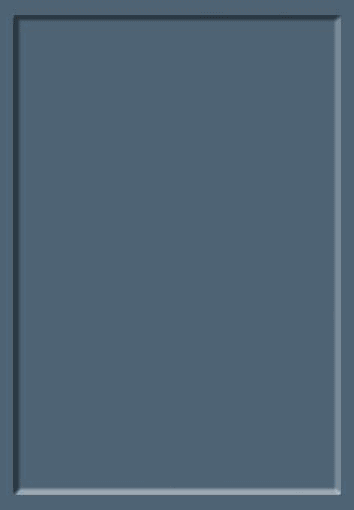

Pattern W24
Very Retro! This slim and minimalistic shaker design is a classic in it’s own right. Not possible as glass panel doors due to the slim frames.
|
Facts sheet for profile W24
|
|
|---|---|
|
Thickness
|
19 mm
|
|
Frame width
|
25 mm
|
|
Sides
|
Smooth. Rounded by 3 mm radius
|
|
Possible for Faktum
|
Yes
|
|
Posible for Metod
|
Yes
|
|
Custom sizes possible
|
Yes, at no extra cost
|
|
Possible as glass panel doors
|
No
|
|
Low drawer fronts
|
Same profile, no difference
|
|
Moisture resistant
|
Yes. Even good for bathrooms, zone 2 and therefore suitable to be fitted in a normal kitchen with minor splash from the sink
|
|
Warranty
|
5-year warranty against damage caused by moisture
|

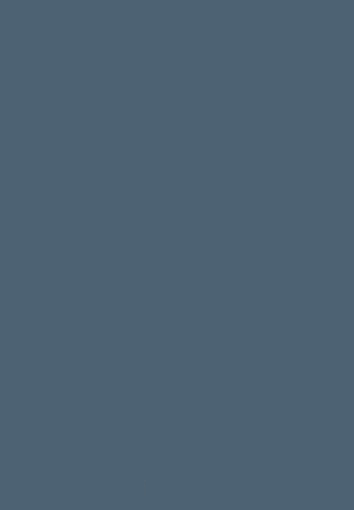

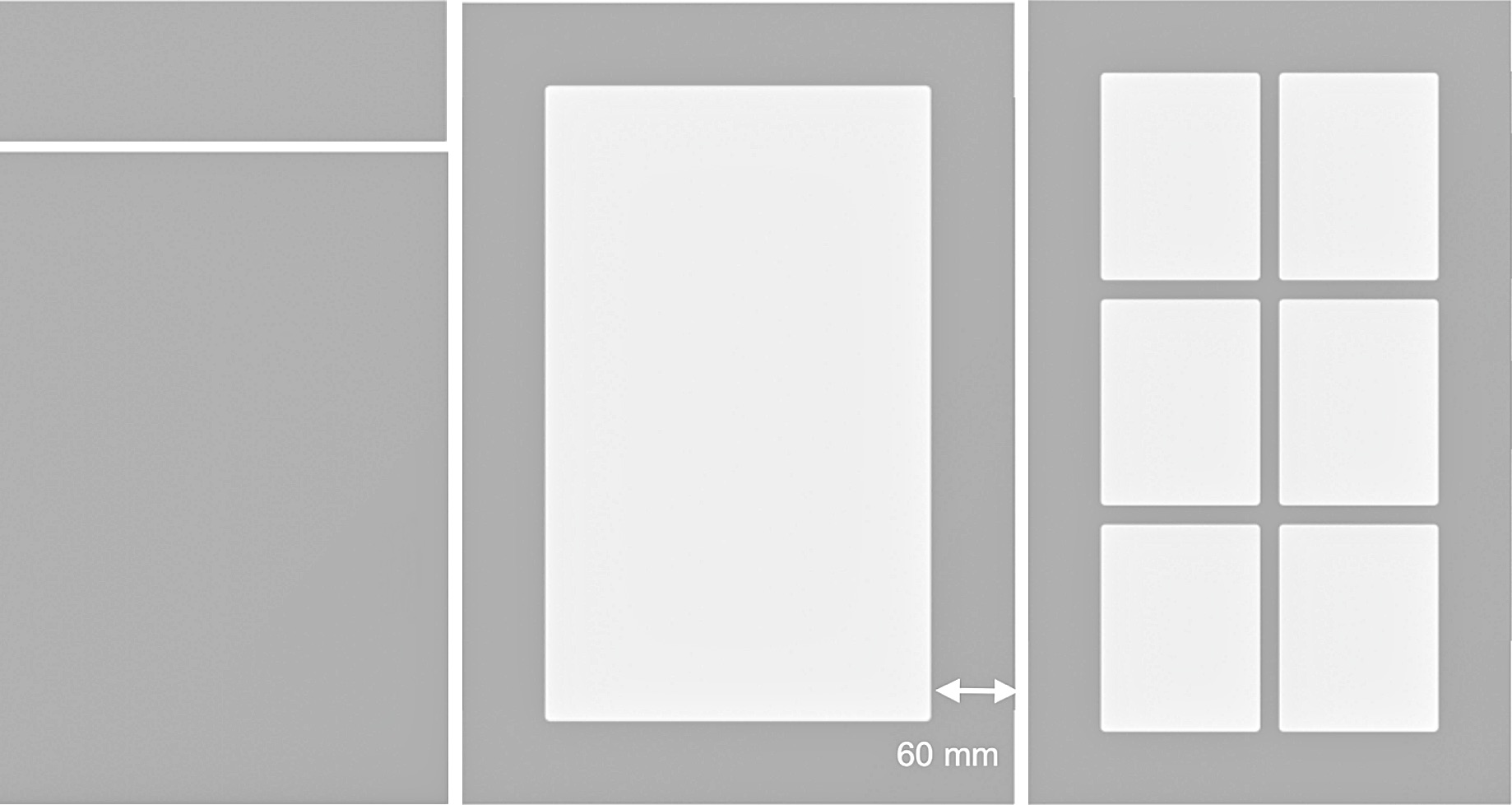

Pattern W28

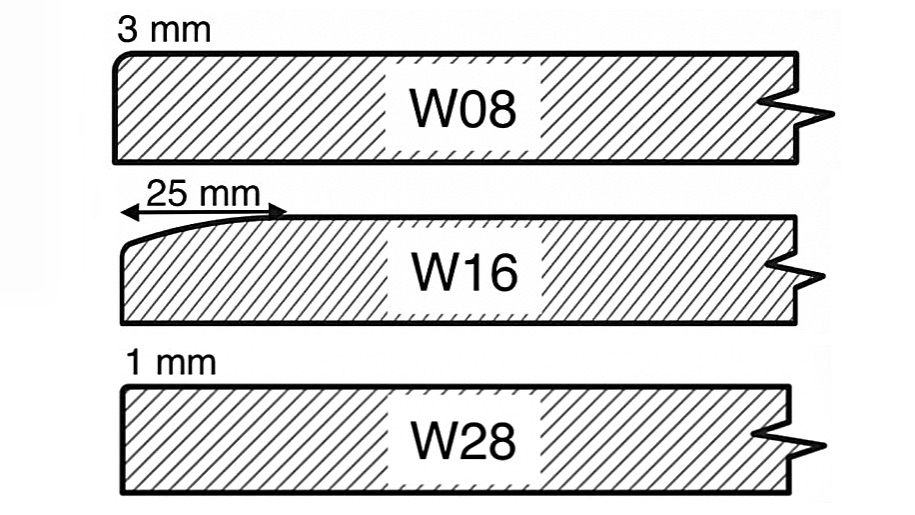

This is a fully flatt design and the sides are sharper compared to it’s W08 sibling. Rounding 1 mm radius compared to 3 mm radius.
|
Facts sheet for profile W28
|
|
|---|---|
|
Thickness
|
18 mm
|
|
Frame width
|
No frame. Fully flat surface
|
|
Sides
|
Sharp. Rounded by just 1 mm radius
|
|
Possible for Faktum
|
Yes
|
|
Posible for Metod
|
Yes
|
|
Custom sizes possible
|
Yes, at no extra cost
|
|
Possible as glass panel doors
|
Yes
|
|
Low drawer fronts
|
Same profile, no difference
|
|
Moisture resistant
|
Yes. Even good for bathrooms, zone 2 and therefore suitable to be fitted in a normal kitchen with minor splash from the sink
|
|
Warranty
|
5-year warranty against damage caused by moisture
|

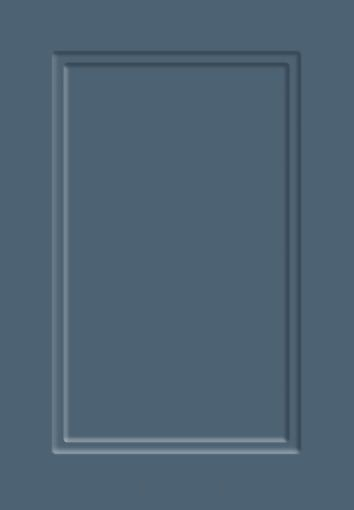

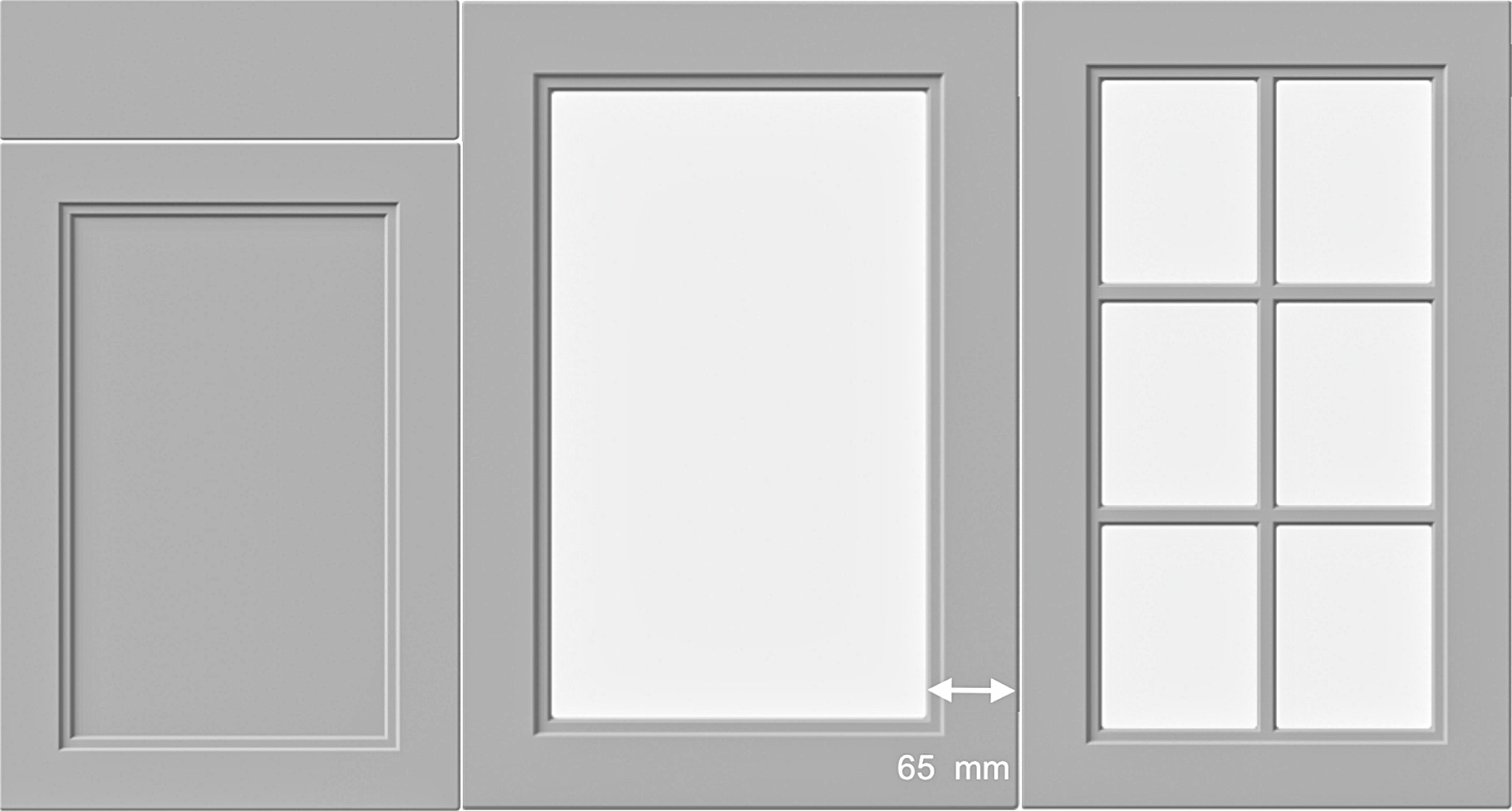

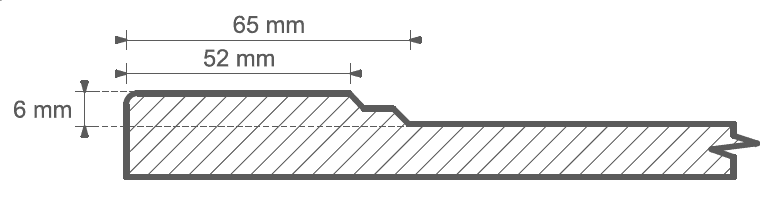

Pattern W30
Elegant and stylish double shaker design with a 2 step frame. Most often considered along with the elegant W12 profile.
|
Facts sheet for profile W30
|
|
|---|---|
|
Thickness
|
18 mm
|
|
Frame width
|
52 / 65 mm
|
|
Sides
|
Smooth. Rounded by 3 mm radius
|
|
Possible for Faktum
|
Yes
|
|
Posible for Metod
|
Yes
|
|
Custom sizes possible
|
Yes, at no extra cost
|
|
Possible as glass panel doors
|
Yes
|
|
Low drawer fronts Faktum
|
Heights 9, 13 & 18 cm = Flat. Taller fronts will have the W30 profile
|
|
Low drawer fronts Metod
|
Height 10 cm = Flat. Taller fronts will have the W30 pattern
|
|
Moisture resistant
|
Yes. Even good for bathrooms, zone 2 and therefore suitable to be fitted in a normal kitchen with minor splash from the sink
|
|
Warranty
|
5-year warranty against damage caused by moisture
|

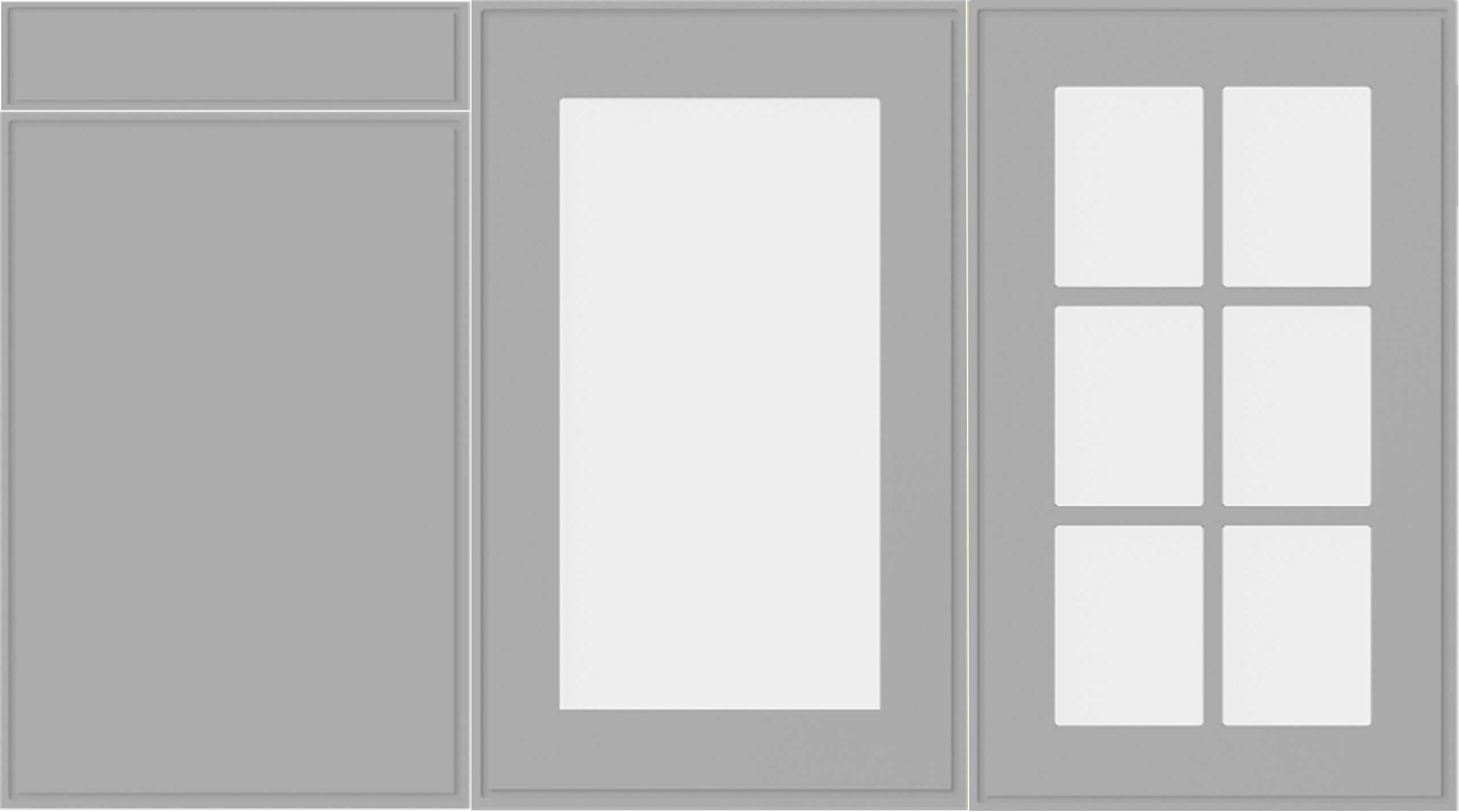

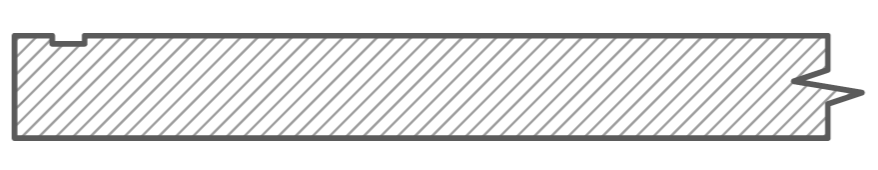

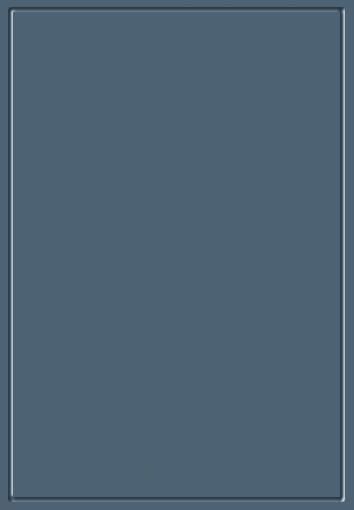

Pattern W39
This is essentially a flat design. The sides are angular and there is an elegant milled groove around the entire front.
|
Facts sheet for profile W39
|
|
|---|---|
|
Thickness
|
18 mm
|
|
Frame width
|
No frame but a milled groove all around
|
|
Sides
|
Sharp and angular
|
|
Possible for Faktum
|
Yes
|
|
Posible for Metod
|
Yes
|
|
Custom sizes possible
|
Yes, at no extra cost
|
|
Possible as glass panel doors
|
Yes
|
|
Low drawer fronts
|
Same profile, no difference
|
|
Moisture resistant
|
Yes. Even good for bathrooms, zone 2 and therefore suitable to be fitted in a normal kitchen with minor splash from the sink
|
|
Warranty
|
5-year warranty against damage caused by moisture
|

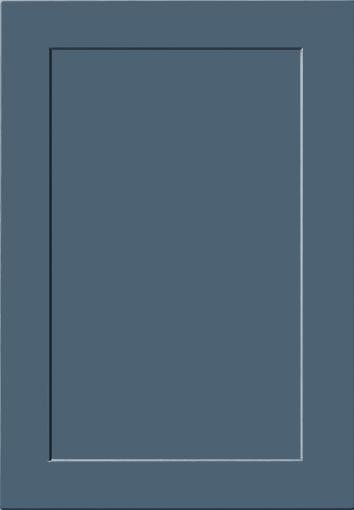

Pattern W75
This is the Super Shaker W75 with the slimmer 55 mm frame compared to the more ordinary 88 mm fram as of the W09 profile. The Super Shaker W75 pattern looks more light weight and got a more “airy” look. Please also consider the W76 sibling.
|
Facts sheet for profile W75
|
|
|---|---|
|
Thickness
|
19 mm
|
|
Frame width
|
55 mm
|
|
Sides
|
Smooth. Rounded by 3 mm radius
|
|
Possible for Faktum
|
Yes
|
|
Posible for Metod
|
Yes
|
|
Custom sizes possible
|
Yes, at no extra cost
|
|
Possible as glass panel doors
|
Yes
|
|
Low drawer fronts Faktum
|
Heights 9, 13 & 18 cm = Flat. Taller fronts will have the W75 profile
|
|
Low drawer fronts Metod
|
Height 10 = Flat. Taller fronts will have the W75 pattern
|
|
Moisture resistant
|
Yes. Even good for bathrooms, zone 2 and therefore suitable to be fitted in a normal kitchen with minor splash from the sink
|
|
Warranty
|
5-year warranty against damage caused by moisture
|

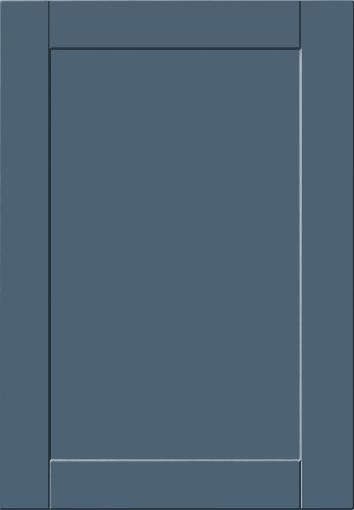

Pattern W76

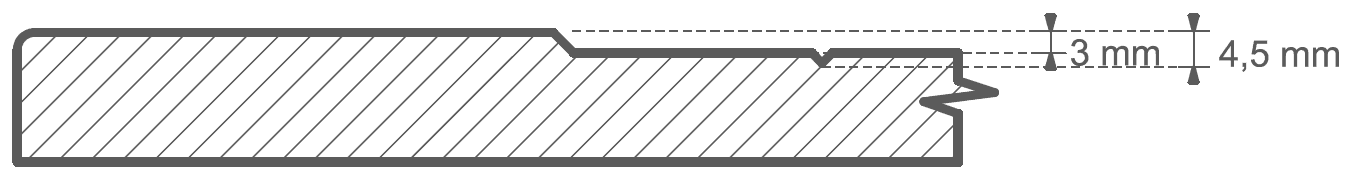

The W76 profile is almost identical to the W75 profile. The only difference is the milled subtle groove to the frame. And compared to the W09 profile the only difference is the width of the frame. 88 mm for the W09 whereas the width of the W76 frame is 55 mm.
|
Facts sheet for profile W76
|
|
|---|---|
|
Thickness
|
19 mm
|
|
Frame width
|
55 mm
|
|
Sides
|
Smooth. Rounded by 3 mm radius
|
|
Possible for Faktum
|
Yes
|
|
Posible for Metod
|
Yes
|
|
Custom sizes possible
|
Yes, at no extra cost
|
|
Possible as glass panel doors
|
Yes
|
|
Low drawer fronts Faktum
|
Heights 9, 13 & 18 cm = Flat. Taller fronts will have the W76 profile
|
|
Low drawer fronts Metod
|
Height 10 = Flat. Taller fronts will have the W76 pattern
|
|
Moisture resistant
|
Yes. Even good for bathrooms, zone 2 and therefore suitable to be fitted in a normal kitchen with minor splash from the sink
|
|
Warranty
|
5-year warranty against damage caused by moisture
|

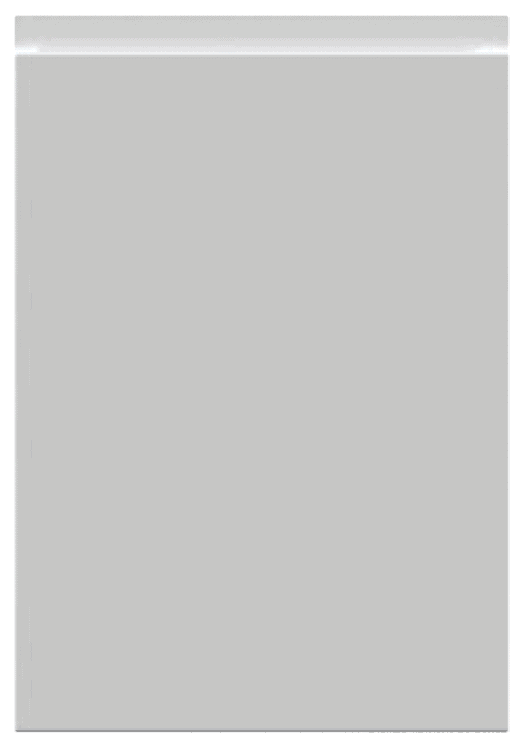

Pattern U12 (Handleless doors with milled grips)
The U12 profile is a range of doors and fronts with milled, recessed grips. A kitchen with fronts in the U12 pattern will have a sleek and elegant look with horizontal lines throughout. No need to retrofit traditional knobs and handles which will save you time and money.
|
Facts sheet for profile U12
|
|
|---|---|
|
Thickness
|
22 mm
|
|
Frame width
|
No frame. Fully flat surface + milled grips at the desired positions
|
|
Sides
|
Sharp. Rounded by just 1 mm radius
|
|
Possible for Faktum
|
Yes
|
|
Posible for Metod
|
Yes
|
|
Custom sizes possible
|
Yes, at no extra cost
|
|
Possible as glass panel doors
|
No
|
|
Low drawer fronts
|
Same profile, no difference
|
|
Moisture resistant
|
Yes. Even good for bathrooms, zone 2 and therefore suitable to be fitted in a normal kitchen with minor splash from the sink
|
|
Warranty
|
5-year warranty against damage caused by moisture
|
